Clock

Clock

---

Sources:

1. Crystal Oscillator (External)
2. The RC Oscillator (Internal)
3. The PLL (Phase Locked Loop) (Internal)

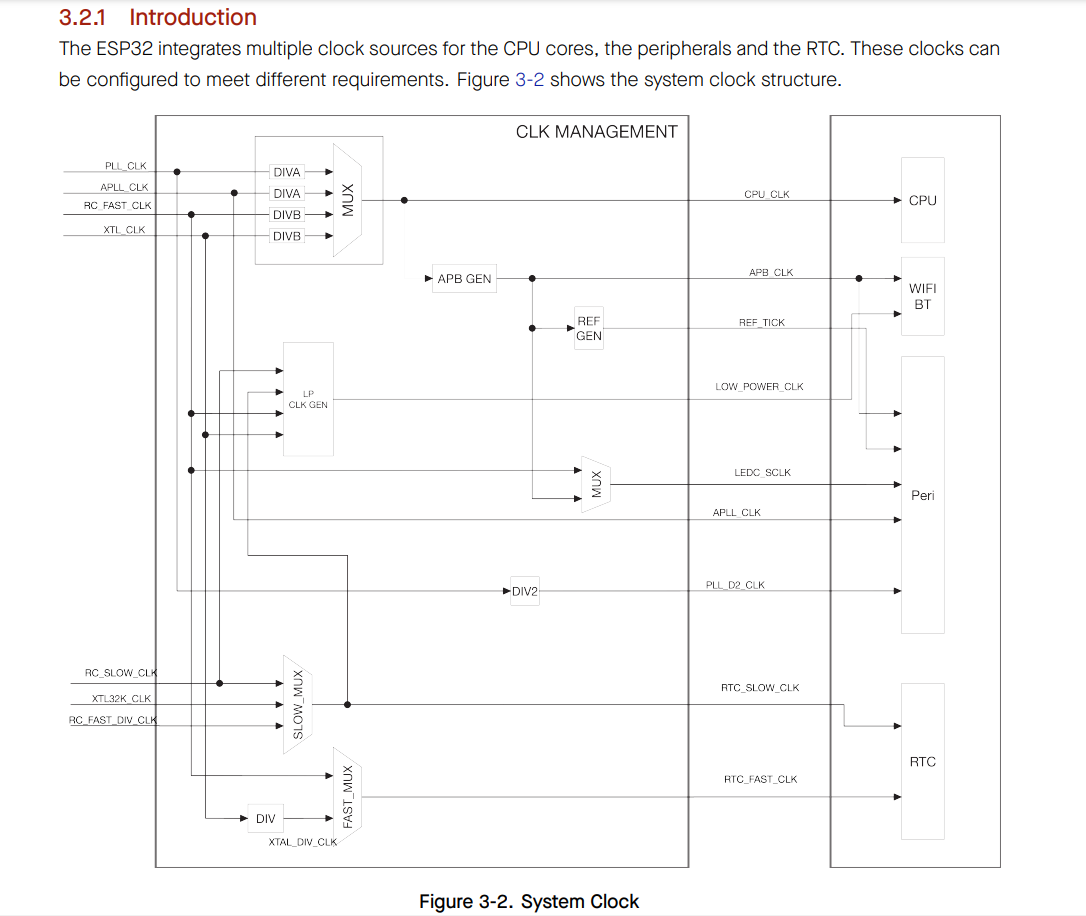

The System Clock layout

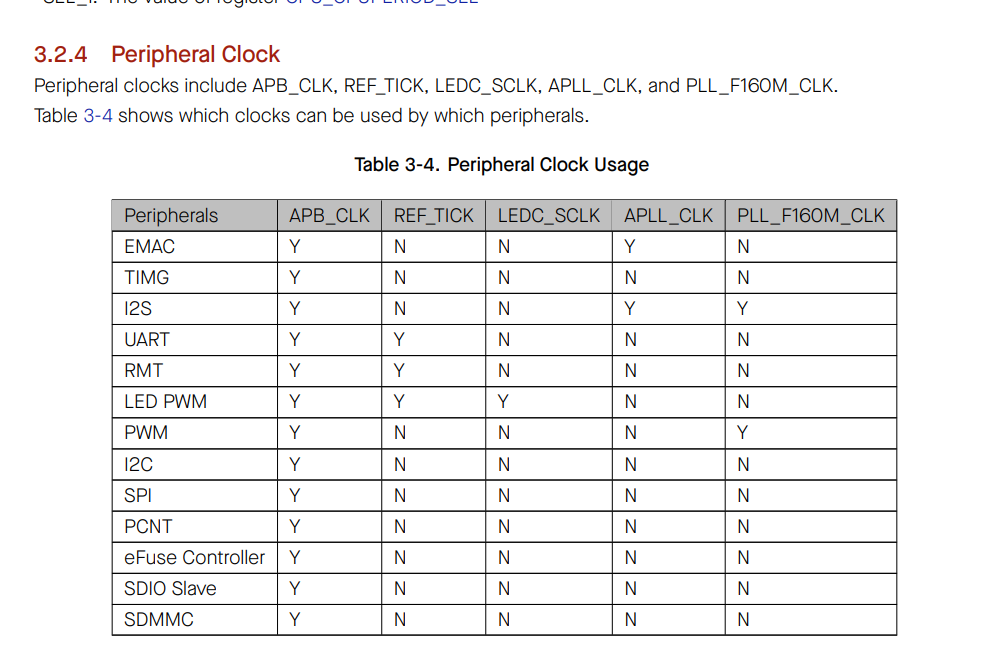

Peripheral Clock Configuration

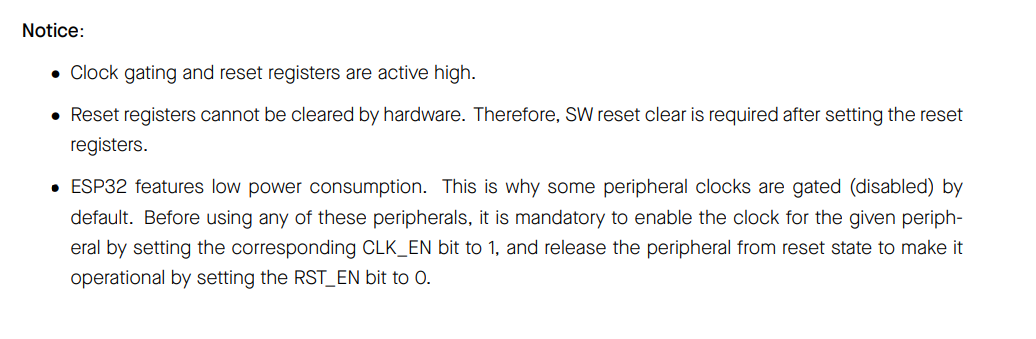

• By default, peripheral clock of most peripheral will be disabled to save power
• Peripheral won’t take or respond to configuration until it’s enabled

•

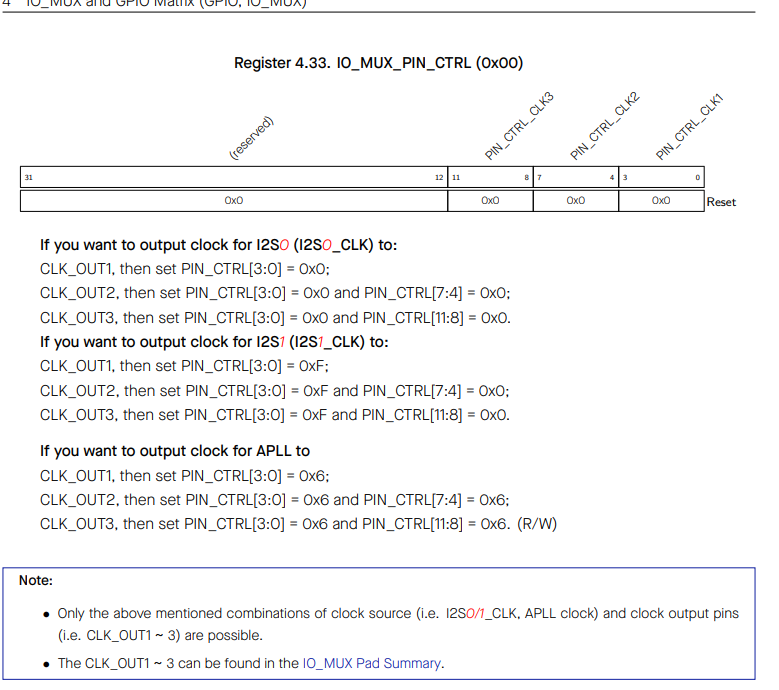

• Clock output setting for GPIO

•

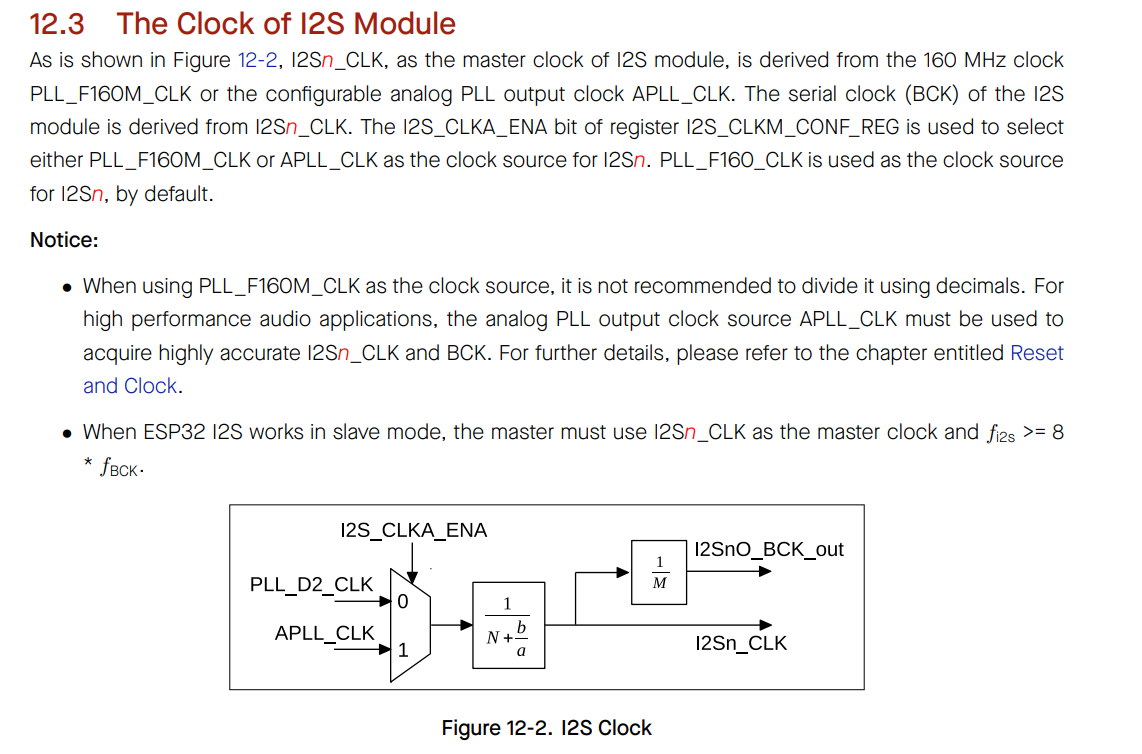

I2S clock source

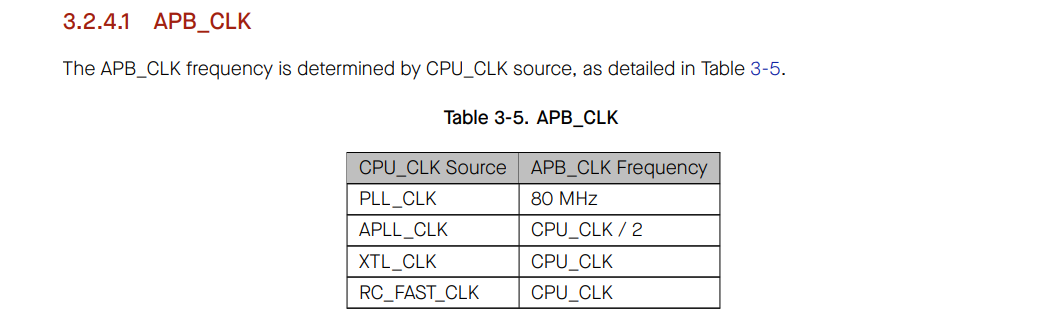

APB_CLK source

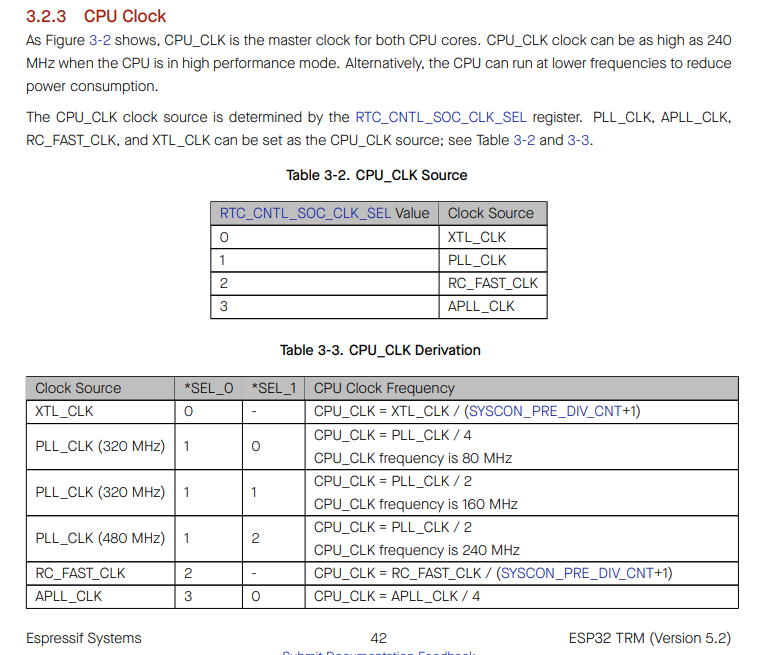

CPU_CLK source
