I2C protocol¶

Multi-master capability
Automatically ACK every byte received
I2C master talks to slaves based on slave addresses
I2C is half duplex

SDA & SCL¶

Both SDA and SCL are bi-directional lines
The bus capacitance limits the number of interfaces connected to the bus

Tip: since both SDA and SCL will connect to pull-up register, the default voltage of both pin should be held at high

Mode¶

Standard Mode¶

* Speed up to 100Kbits/s
* the very first mode of specification
* __cannot__ upward compatible

Fast Mode¶

* Speed up to 400Kbits/s
* downward compatible

Fast Mode +¶

Speed up to 1Mbits/s

High Speed Mode¶

Speed up to 3.4Mbits/s

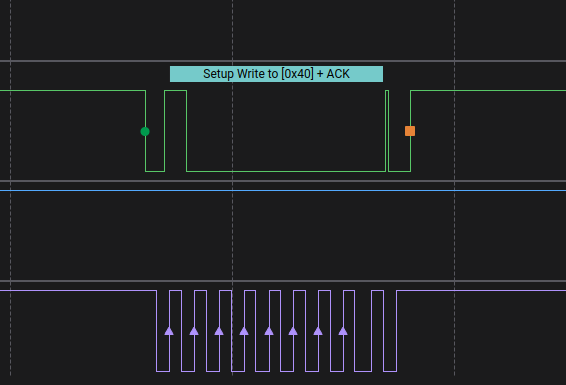

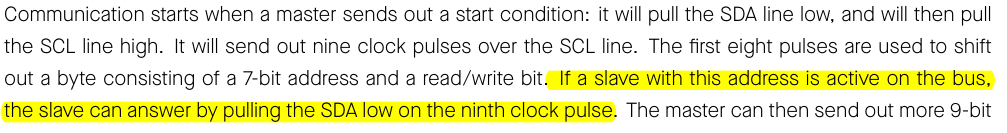

Protocol Message¶

start with 8-bit of slave address

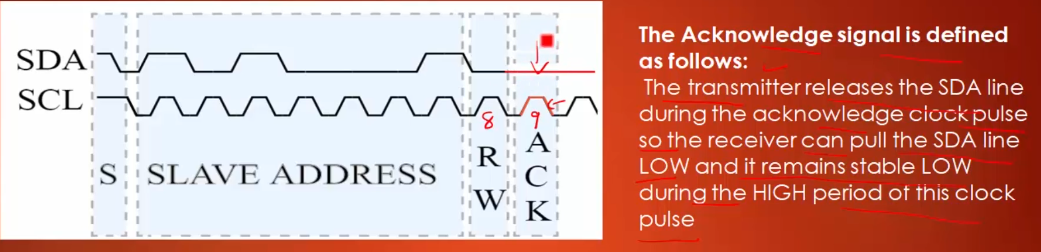

Each byte must followed by an Acknowledge bit

if SDA is low during SCL cycle : ACK
> is __SDA__ is high during __SCL__ cycle : __NACK__

Data transfer with the most significant bit (MSB) first.

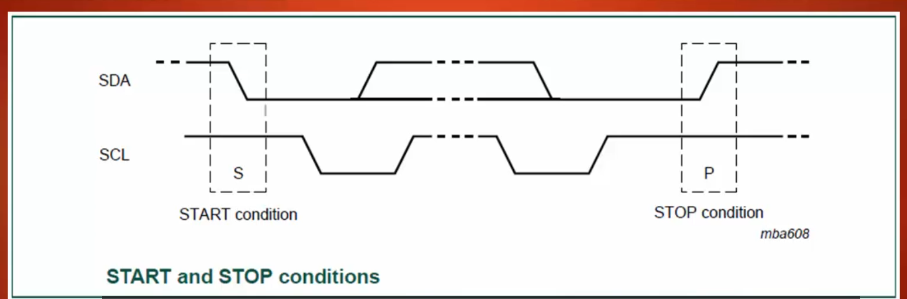

Start(S) and Stop(P) condition¶

High to Low on SDA line while SCL is high defines a start condition

Low to High on SDA line while SCL is high defines a stop condition

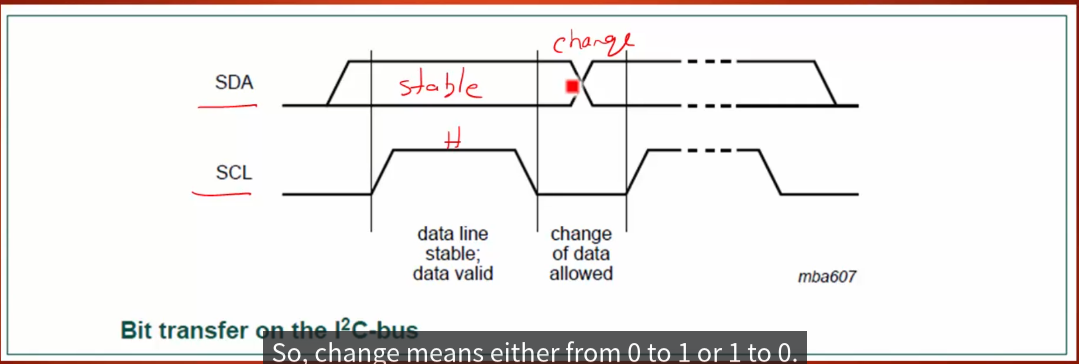

Data validaity¶

The HIGH or LOW state of the data line can only change when the clock signal on the SCL line is LOW_(ONLY IN DATA TRANSMISSION)

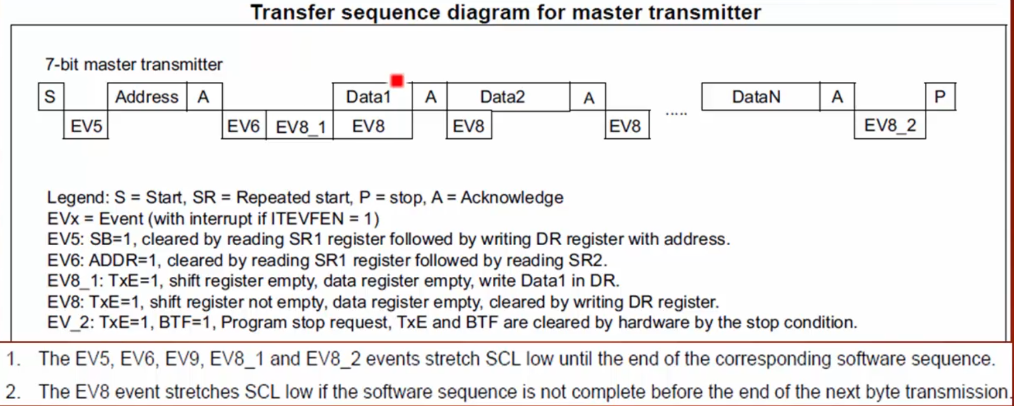

MASTER TO SLAVE¶

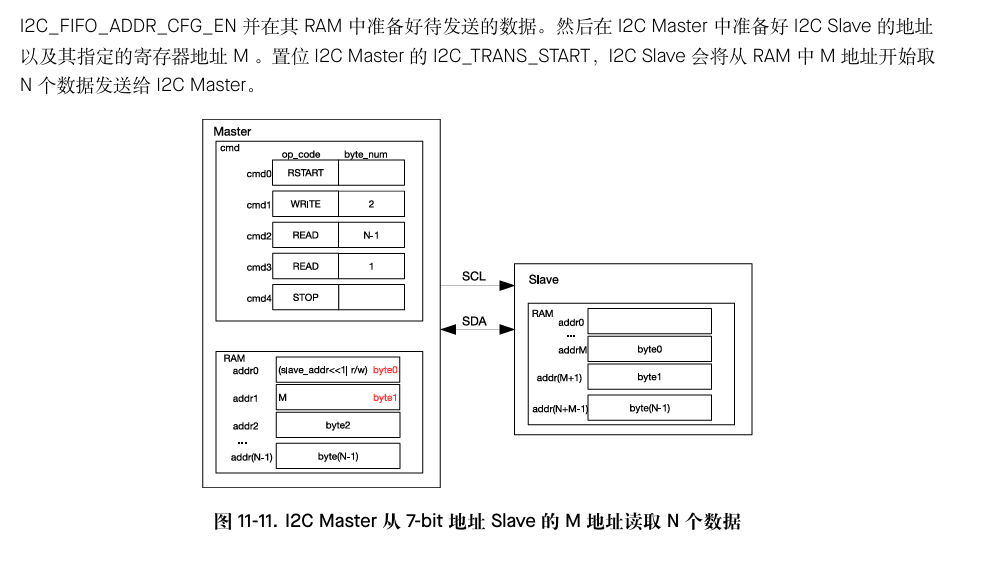

MASTER receive data from slave
Whenever slave receives the ACK from the master, that’s an indication for the slave to send one more byte to the master
Whenever master receives the ACK from the slave, that’s an indication for the master that slave has received the data successfully

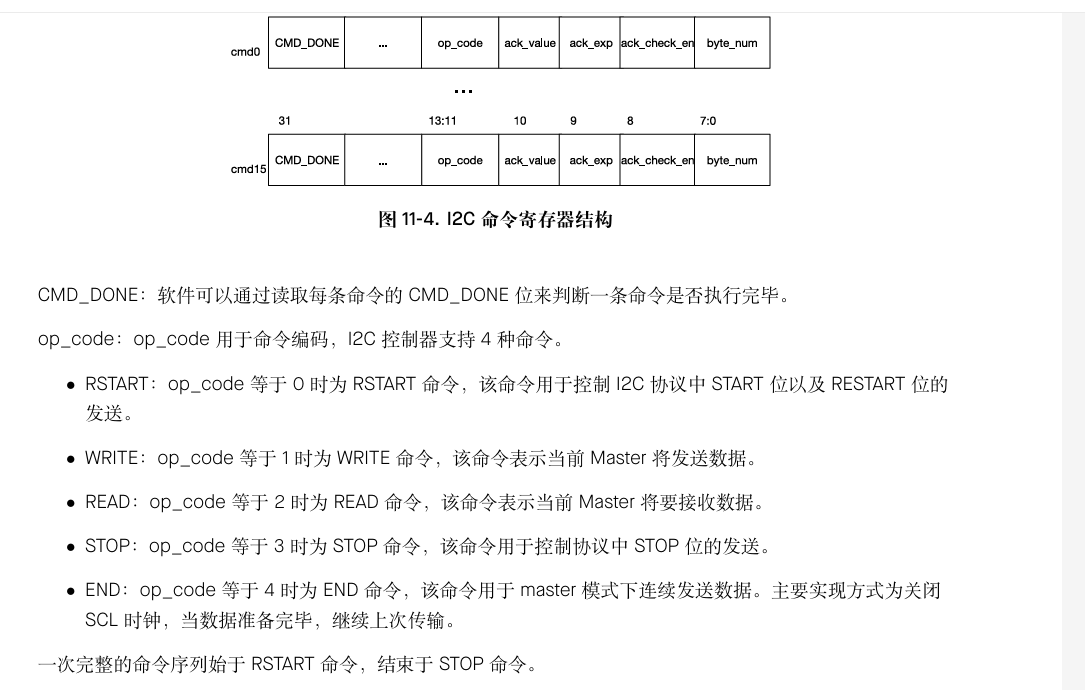

ESP32 document

Repeated Start(Sr)¶

start again without stop

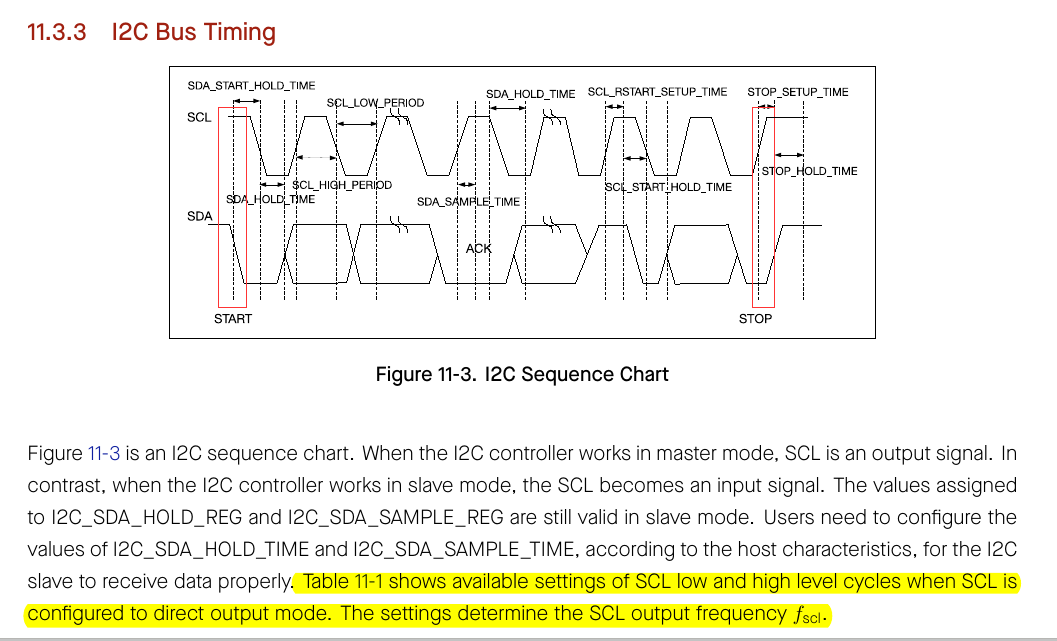

I2C serial clock settings¶

divided into standard mode and fast mode
in standard mode
T_low may equal to T_high
in fast mode
T_low = 2 T_high, or
T_low = 1.8 T_high
Clock Stretching

Clock Stretching means that holding the clock to 0 or ground level, to pause the whole I2C interface until clock is given up to it’s normal operation level

There are situations where an I2C slaves is not able to co-operate with the clock speed given by the master and needs to slow down a little.

It’s a hardware support, we do not need to implement the stretching functionality

Clock control register need to be calculated by following reference manual

BTF : Byte transfer finished

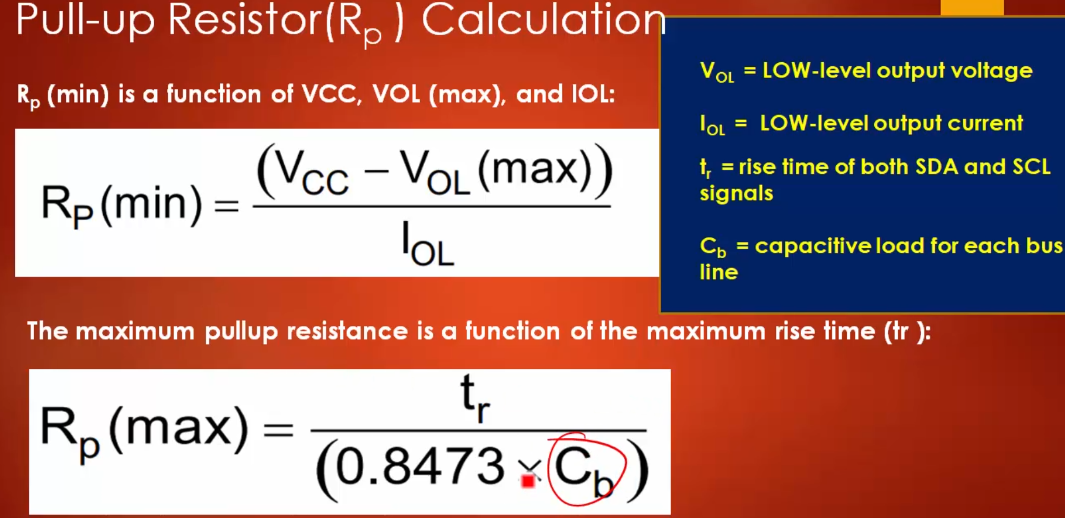

Pull up resistance, Rise time and Bus capacitance¶

Bus capacitance limits how long your I2C wiring can be and how many devices you can connect to the bus

ESP32 hold time¶

ESP32 I2C enable procedure¶

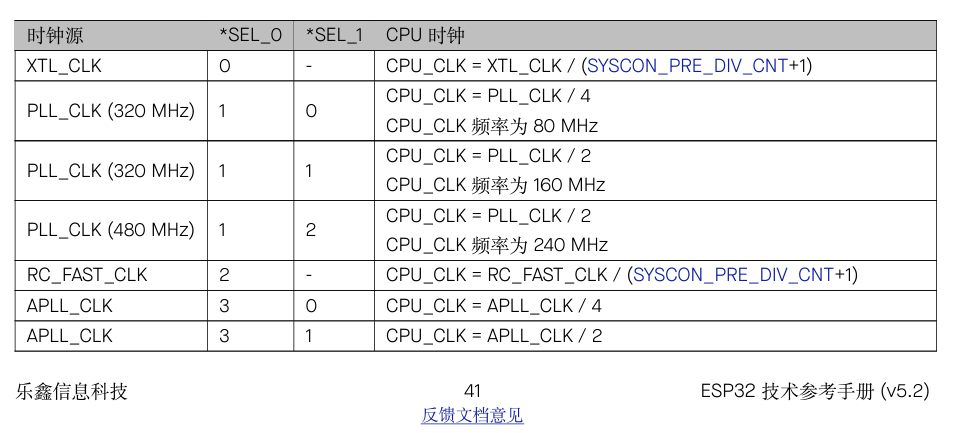

default will be SEL_0 = 1 and SEL_1 =1, thus CPU clock is 160MHz
